RFID Gates Suspend Detection

RFID Gates Suspend Detection


RFID Gates Suspend Detection - Proline Model


Launch the Library Pedestal Configuration Tool from the desktop of the Management Console

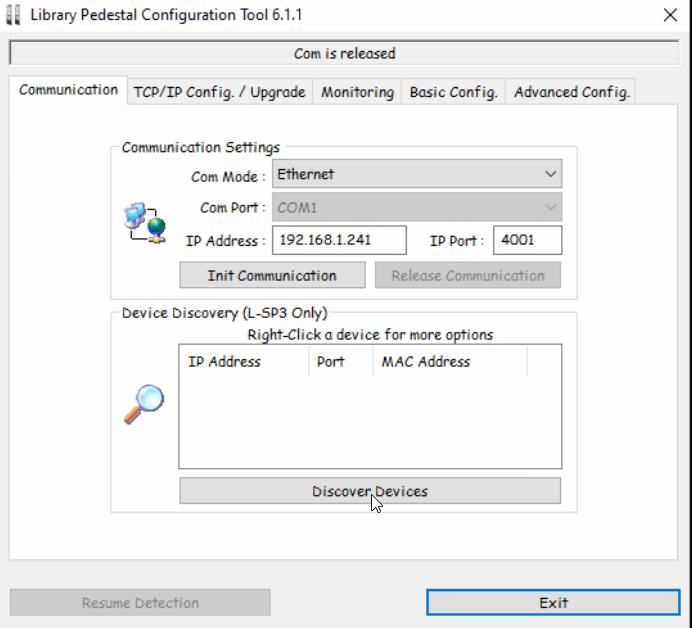

Select Discover Devices to find all RFID Gates on the network

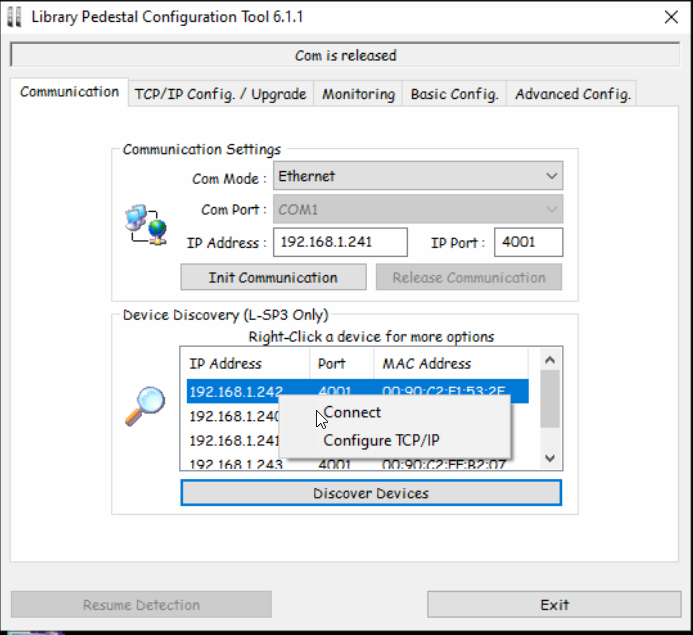

All Gates found on the network will be listed, right click on the first device and click connect

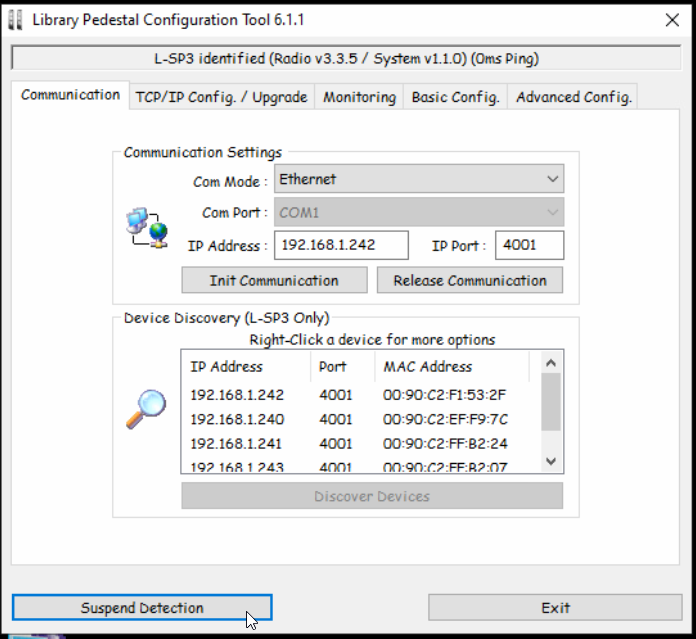

Select Suspend Detection to turn off the Detection Alarm



Repeat this process to Suspend Detection on all Gates.


Version History

Version

Date

Detail

Author

1.0

27/06/22
Document created
Neil Garton
1.103/10/23Instructions updatedNeil Garton
