X11 Kiosk receipt paper replacement and clearing paper jam

X11 Kiosk receipt paper replacement and clearing paper jam


X11 Kiosk receipt paper replacement and clearing paper jam


X11 Kiosk receipt paper replacement and clearing paper jam

EnvisionWare Item Number

Y-SSC-X11-C/K-U Receipt Printer



Tools Required to Replace  Part

None


Replacement

Step

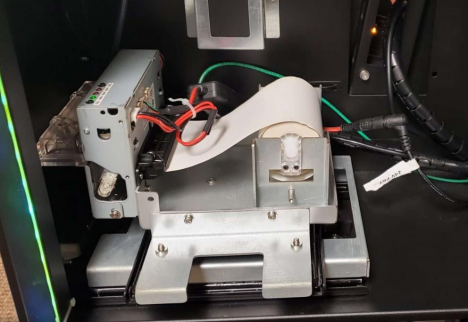

Open X11 Kiosk  side panel

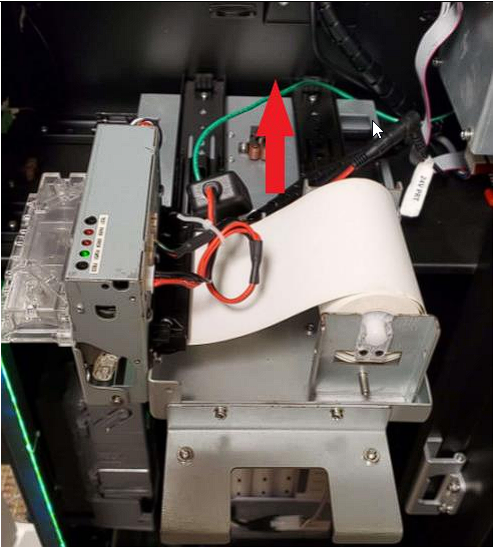

Slide receipt

printer back

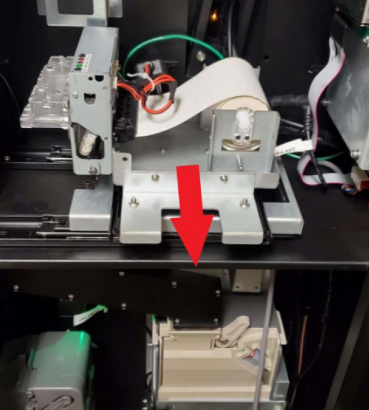

Slide the receipt  printer out of

the kiosk

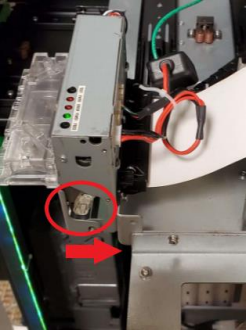

Rotate clear

plastic lever

counterclockwis e to open mouth  feed

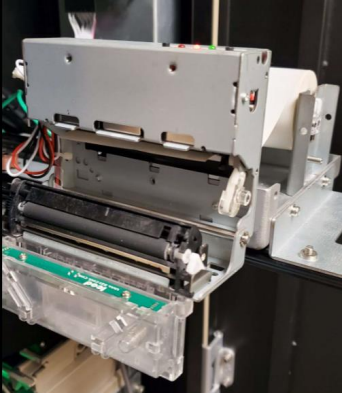

Clear any paper  jam if needed.  You may also

trim receipt

paper if paper  end is not

straight

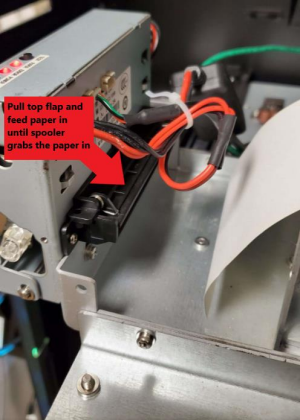

Close the front  mouth of receipt  printer and feed  paper into back  feed entrance.  Make sure to

pull top flap for  easier access

before feeding


Paper will be

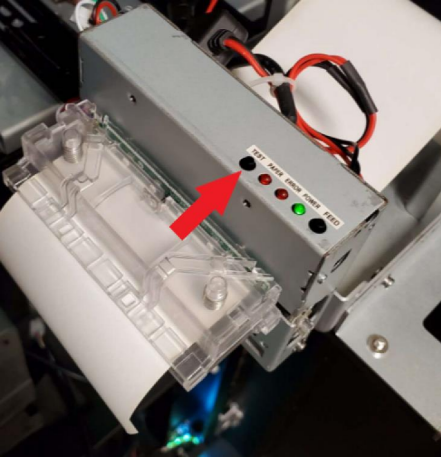

extending out a  little. Press the  test button.

Receipt printer  will then print a  test sheet and  trim the paper

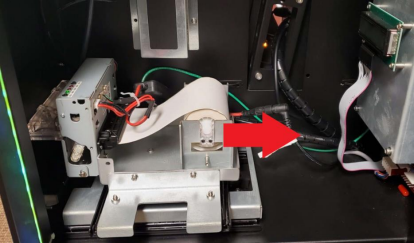

Slide receipt

printer back into  Kiosk




Version History

Version

Date

Detail

Author

1.0

29/12/2025

Document Created

Neil Garton














Retention Policy

Permanent
